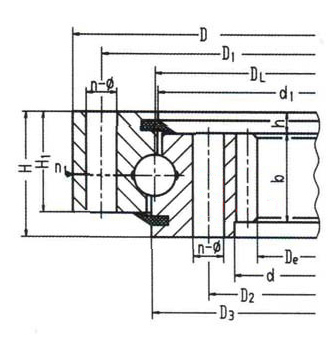

内 齿 式

Inner tooth

type

(DL)

D

d

H

D₁

D₂

n

Ф

n₁

Ф

D₃

d₁

H₁

h

m

De

z

b

x

Coa

kg

mm

mm

mm

mm

mm

mm

10N

HSN.20.625

725

525

80

685

565

18

18

3

M10×1

626

624

68

12

5

498.8

101

60

+0.35

5.2

100

HSN.20.625A

6

496.7

84

+0.35

6.2

HSN.20.720

820

620

80

780

660

18

18

3

M10×1

721

719

68

12

6

586.6

99

60

+0.35

6.2

120

HSN.20.720A

8

582.3

74

+0.35

8.3

HSN.30.820

940

705

95

893

749

24

20

4

M10×1

821

818

83

12

6

664.5

112

70

+0.35

7.2

210

HSN.30.820A

10

658.0

67

+0.35

12.2

HSN.30.880

1000

760

95

956

800

24

20

4

M10×1

881

878

83

12

8

718.2

91

70

+0.35

9.7

230

HSN.30.880A

10

707.9

72

+0.35

12.2

HSN.30.1020

1170

875

95

1120

930

24

22

4

M10×1

1021

1018

80

15

8

830.1

105

70

+0.35

9.7

300

HSN.30.1020A

10

827.8

84

+0.35

12.2

HSN.50.1220

1365

1075

120

1310

1130

36

24

6

M10×1

1221

1218

105

15

10

1027.8

104

90

+0.35

15.7

450

HSN.50.1220A

12

1017.3

86

+0.35

18.8

HSN.35.1250

1390

1090

120

1350

1150

36

26

6

M10×1

1251

1248

105

15

10

1037

105

90

+0.35

15.7

520

HSN.35.1250A

12

1041.2

88

+0.35

18.8

HSN.35.1435

1595

1278

120

1535

1335

36

26

6

M10×1

1436

1433

105

15

12

1221.21

103

90

+0.35

18.8

610

HSN.35.1435A

14

1214.8

88

+0.35

21.9

HSN.35.1540

1720

1360

140

1660

1420

42

26

6

M10×1

1541

1538

122

18

12

1293.1

109

110

+0.35

23.0

732

HSN.35.1540A

14

1284.8

93

+0.35

26.8

HSN.35.1700

1875

1525

140

1815

1585

42

29

6

M10×1

1701

1698

122

18

14

1452.7

105

110

+0.35

26.8

844

HSN.35.1700A

16

1452.3

92

+0.35

30.5

HSN.40.1880

2100

1665

160

2030

1740

48

32

6

M10×1

1881

1878

140

20

14

1592.6

115

115

+0.35

27.8

1440

HSN.40.1880A

18

1579.9

89

+0.35

35.8

HSN.40.2115

2325

1900

160

2245

1980

48

32

6

M10×1

2116

2113

140

20

15

1804.1

114

115

+0.35

31.9

1600

HSN.40.2115A

20

1795.4

91

+0.35

40.0

HSN.40.2370

2600

2146

180

2520

2200

48

32

6

M10×1

2371

2368

158

22

18

2056.6

116

130

+0.35

40.7

2100

HSN.40.2370A

22

2040.9

94

+0.35

49.7

HSN.40.2600

2835

2365

180

2750

2450

54

36

6

M10×1

2601

2598

158

22

18

2263.5

127

130

+0.35

37.6

2400

HSN.40.2600A

22

2260.8

104

+0.35

45.9

HSN.50.2820

3085

2555

200

3000

2640

54

36

6

M10×1

2822

2818

178

22

20

2455

124

150

+0.35

52.2

3400

HSN.50.2820A

25

2444.1

99

+0.35

65.3

HSN.50.3120

3400

2840

200

3310

2930

54

36

6

M10×1

3122

3118

178

22

22

2722.5

125

150

+0.35

57.4

4000

HSN.50.3120A

25

2719

110

+0.35

65.3

HSN.50.3580

3920

3240

240

3820

3340

60

40

6

M10×1

3582

3578

218

22

22

3118.4

143

190

+0.35

72.7

6700

HSN.50.3580A

25

3118.8

126

+0.35

82.6

HSN.50.4030

4370

3690

240

4270

3790

66

40

6

M10×1

4032

4028

218

22

22

3558.3

163

190

+0.35

53.6

7700

HSN.A50.4030

28

3549.0

128

+0.35

68.2

HSN.50.4540

4860

4210

240

4760

4310

72

40

6

M10×1

4542

4538

218

22

22

4042.2

185

190

+0.35

72.1

8760

HSN.50.4540A

30

4042.4

136

+0.35

99.1
